Based on platform of flip chip bonding without bonding wires technology, E-Star products have the advantages of high-reliability, low-thermal-resistance characteristics. It exhibits better luminous efficiency, superior color uniformity and provides excellent illumination quality for indoor and outdoor lighting uses.
Application
|
|
|
|
|
|
|
| Street Light |
| PAR Light
|
| High Light
|
| Auto Light
|

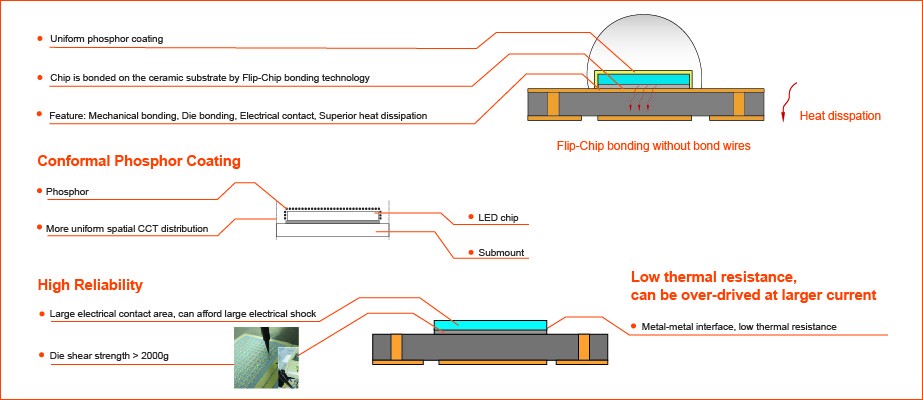

Technical Advantage（Flip-Chip Bonding, free from bond wires）
| Model | CRI | CCT (K) | Luminous Flux typ. (lm) | Luminous efficacy typ. (lm/W) | Foward Current (mA) | Forward Voltage (V) |
| ESG3 | 70 | 5700 | 165 | 158 | 350 | 2.95 |
| ESD3 | 70 | 5700 | 130 | 120 | 350 | 3.00 |
| ESG3 | 70 | 4000 | 155 | 136 | 350 | 2.95 |
| ESG3 | 70 | 3000 | 150 | 132 | 350 | 2.95
|
